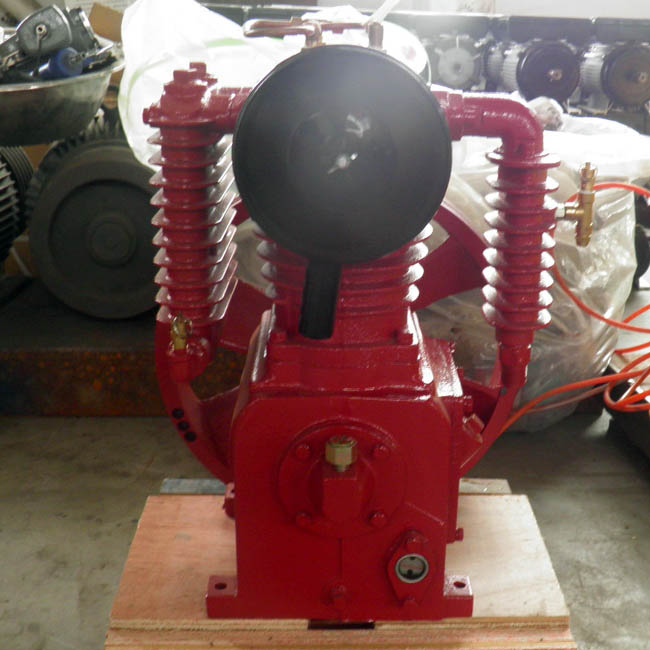

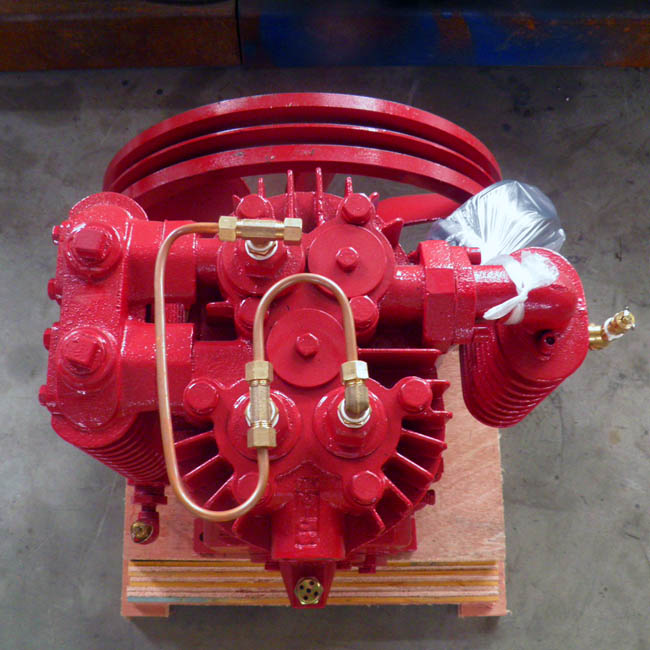

Air Pump BC55TC
- Air Delivery: 493-600 L/min
- Motor Power: 5.5 hp or 7.5 hp
- Engine Power: 13.0 hp
- Pump Speed: 690 rpm
- Product description: Belt Drive Air Pump BC55TC Max Pressure:12bar/175psi with small front cover, inlet unloader
Product introduction
Model |
BC55TC |
Air Delivery |
493-600 L/min |
Cylinder |
(Φ105x89mm)x1 + (Φ55x89mm)x1 |
Motor power | 4.5kw/5.5hp or 5.5kw/7.5hp |
Engine power | 13 hp |
Pump speed | 690 rpm |
Max. pressure | 10bar/145psi or 12bar/175psi |
Body material | cast iron |
Pulley diameter |
Φ426 mm/2B |
Feature | small front cover, inlet unloader, colors at option |
Packing | 55x55x68cm, plywood case |
N.W. |
72.5 kg |
