> C type Pump

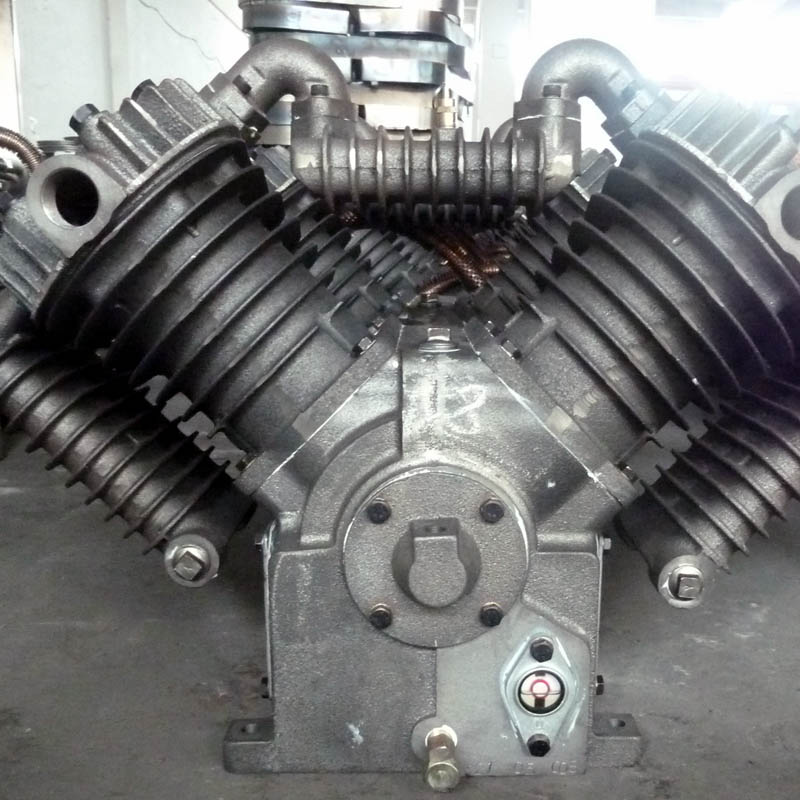

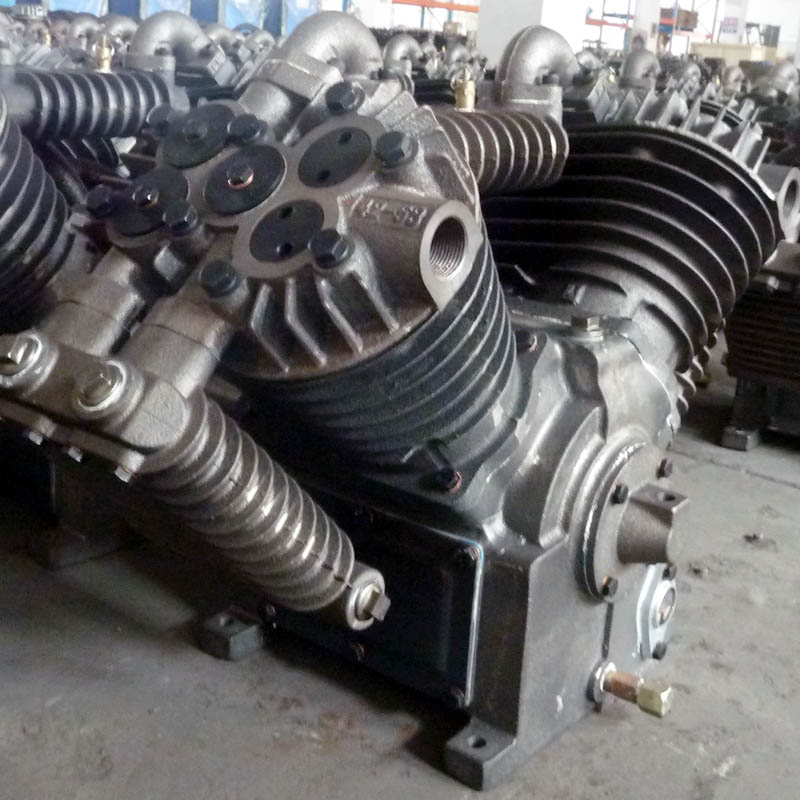

Air Pump BC100T
- Air Delivery: 955-1050 L/min
- Motor Power: 7.5 kw/ 10 hp
- Engine Power: 15/20 hp
- Pump Speed: 620 rpm
- Product description: Belt Drive Air Pump BC100T Max Pressure:12bar/175psi with small front cover
Product introduction
|
Model |
BC100T |
|
Air Delivery |
955-1,050 L/min |
|
Cylinder |
(Φ105x89mm)x2 +(Φ55x89mm)x2 |
|
Motor Power |
7.5 kw/ 10 hp |
|
Engine Power |
15/20 hp |
|
Pump Speed |
620 rpm |
|
Max Pressure |
10bar/145psi or 12bar/175psi |
|
Body Material |
Cast Iron |
| Pulley diameter | 480 mm/2B |
| Feature | with small front cover, colors at option |
| Packing | 76x64x68.5cm, plywood case |
|
N.W. |
99 kg |
