> W type Pump - Heavy Duty

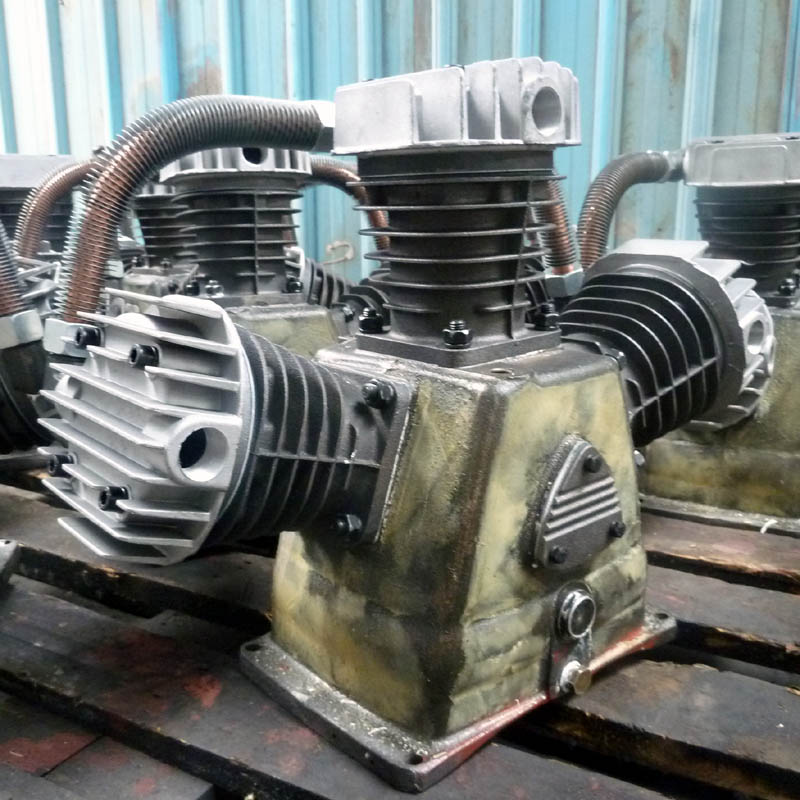

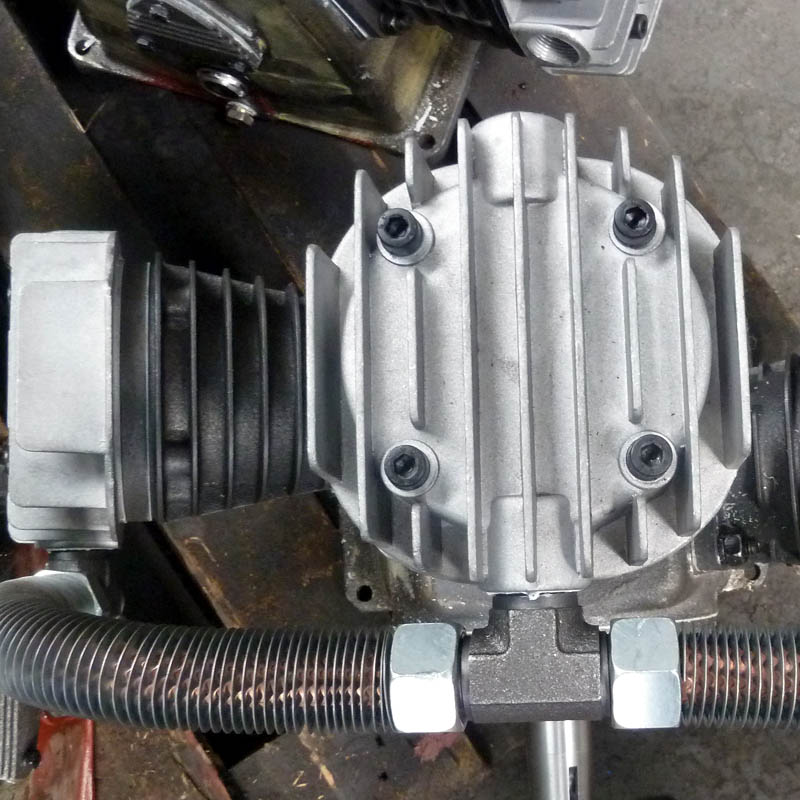

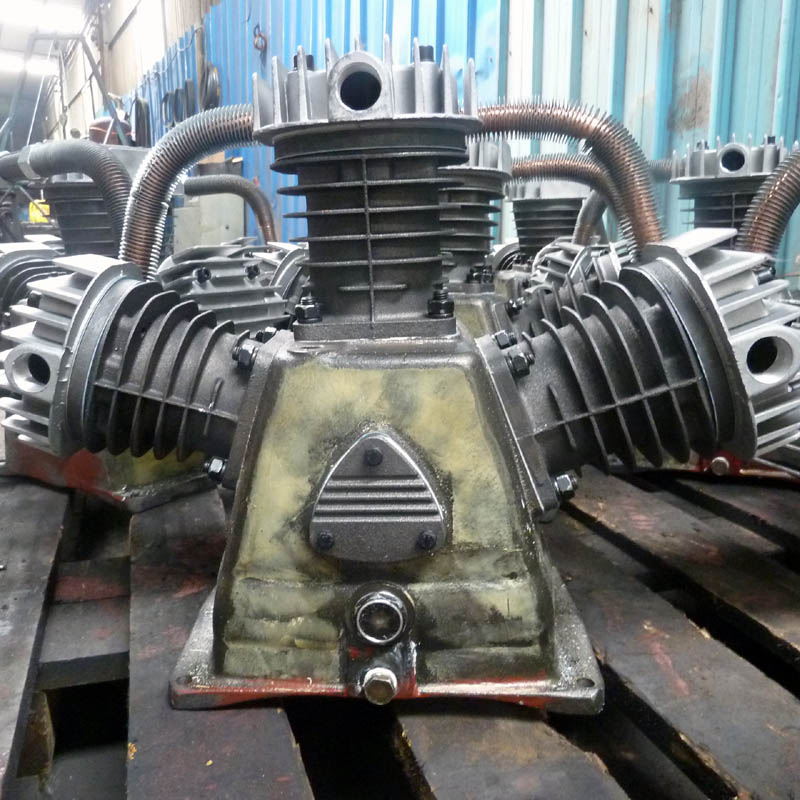

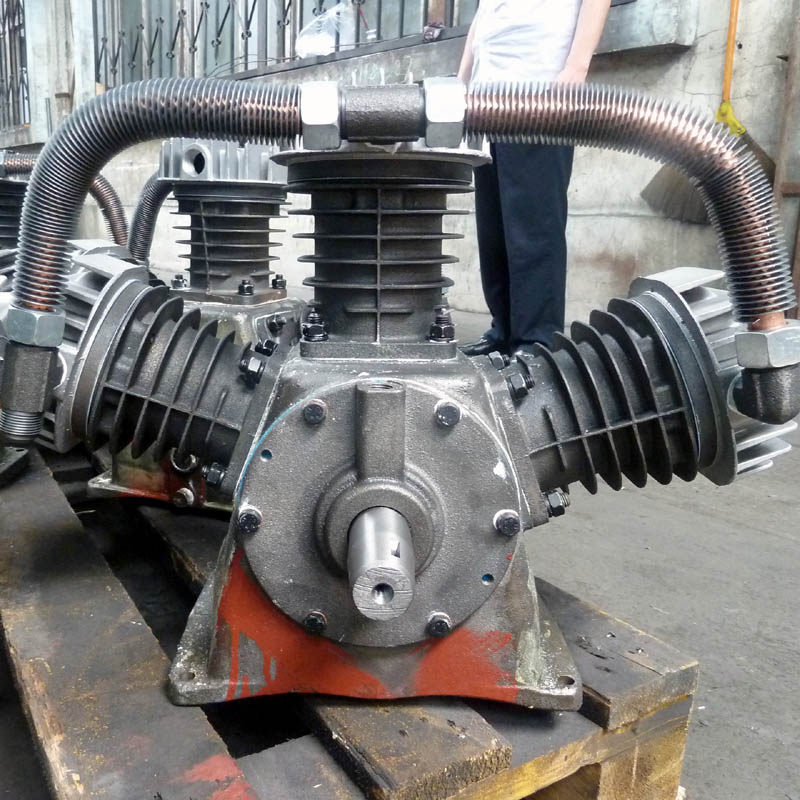

Air Pump BWI75L
- Air Delivery: 650 L/min
- Motor Power: 7.5 hp
- Max. Pressure: 10 bar/ 145 psi
- Body Material: Cast Iron
- Product description: Belt drive air pump - W type - BWI75L Air Delivery: 650 L/min; No. Of Cylinder: 3-single stage; Motor Power: 7.5 hp; Max. Pressure: 10 bar / 145 psi; Body Material: Cast Iron;
Product introduction
| Model | BWI75L |
| Air delivery | 650 lit/min |
| Cylinder | (Φ80 x 60 mm) x 3 |
| Motor power | 5.5 kw / 7.5 hp |
| Engine power | 13 hp |
| Pump speed | 1,000 rpm |
| Max. pressure | 10 bar / 145 psi |
| Body material | cast iron |
| Pulley diameter | Φ365 mm/ 2B |
| Inlet unloader | without |
| Packing | 228 x 62 x 59 cm/ 6 pc, plywood case |
| N.W. | 42 kg |
