> W type Pump - Heavy Duty
Air Pump BWI100
- Air Delivery: 983 L/min
- Motor Power: 10 hp
- Max. Pressure: 8 bar/ 115 psi
- Body Material: Cast Iron
- Product description: Belt drive air pump - W type - BWI100 Air Delivery: 983 L/min; No. Of Cylinder: 3-single stage; Motor Power: 10.0 hp; Pump Speed: 983 rpm; Max. Pressure: 8 bar / 115 psi; Body Material: Cast Iro
Product introduction
| Model | BWI100 |
| Air delivery | 983 lit/min |
| Cylinder | (Φ90 x 70 mm) x 3 |
| Motor power | 7.5 kw / 10 hp |
| Engine power | 13 hp |
| Pump speed | 983 rpm |
| Max. pressure | 8 bar / 115 psi |
| Body material | cast iron |
| Pulley diameter | Φ370 mm/2B |
| Inlet unloader | without |

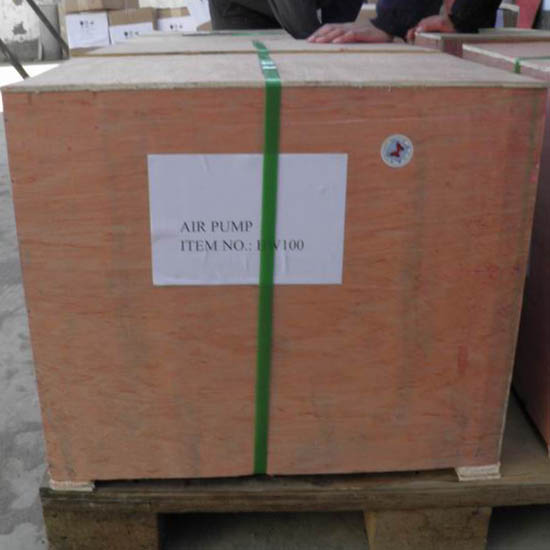

| Packing | 115x113x63 cm/6 units, plywood case |
| N.W. | 38.4 kg |
PREVIOUS：Air Pump BWII40C
NEXT：Air Pump BWI100R
