> W type Pump - Heavy Duty
Air Pump BWI100R
- Air Delivery: 890 L/min
- Motor Power: 10 hp
- Max. Pressure: 8bar/115psi
- Body Material: Cast Iron
- Product description: Belt drive air pump - W type - BWI100R Air Delivery: 900 L/min; Motor Power: 10 hp; Max. Pressure: 8 bar / 115 psi; Body Material: Cast Iron;
Product introduction
| Model | BWI100R |
| Air delivery | 890 lit/min |
| Cylinder | (Φ90 x 65 mm) x 3 |
| Motor power | 7.5 kw / 10 hp |
| Engine power | 13 hp |
| Pump speed | 983 rpm |
| Max. pressure | 8 bar / 115 psi |
| Body material | cast iron |
| Pulley diameter | Φ400 mm/ 2B |
| Inlet unloader | without |

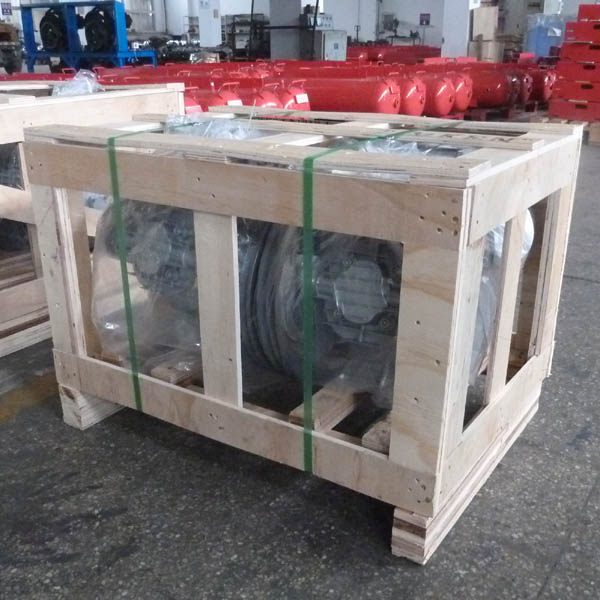

| Packing | 72x62x50 cm/2pc, plywood case |
| N.W. | 38.4 kg |
PREVIOUS：Air Pump BWI100
NEXT：Air Pump BWI100L
