> M type Pump
Air Pump BMII160XG30
- Air Delivery: 1,300 L/min
- Motor Power: 11 kw / 15 hp
- Max. pressure: 3 mpa/ 435 psi
- Pump Speed: 750 rpm
- Product description: Belt Drive Air Pump M Typel Max Pressure: 3 mpa / 435 psi Pulley 350mm/3B plus 650mm fan
Product introduction
|
Model |
BMII160XG30 |
|
Air Delivery |
1,300 L/min |
|
Cylinder |
(Φ125x 80 mm)x 2 + (Φ100x 80 mm)x 1 +(Φ75x 80 mm)x 1 |
|
Motor Power |
11 kw / 15 hp |
|
Pump Speed |
750 rpm |
|
Max Pressure |
3 mpa/ 435 psi |
|
Body Material |
Cast Iron |

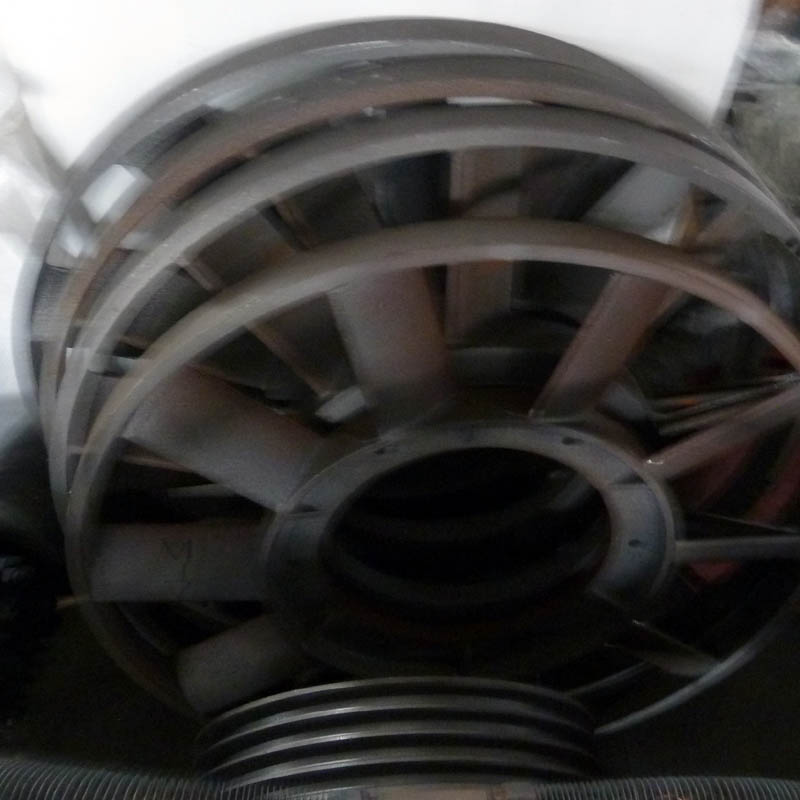

| Pulley diameter | Φ350 mm/ 3B + Φ650 mm fan |
| Inlet unloader | without |
| Packing | 95x 73x 85 cm, plywood case |
| N.W. |
224 kg |
