> H type Pump - Iron Case

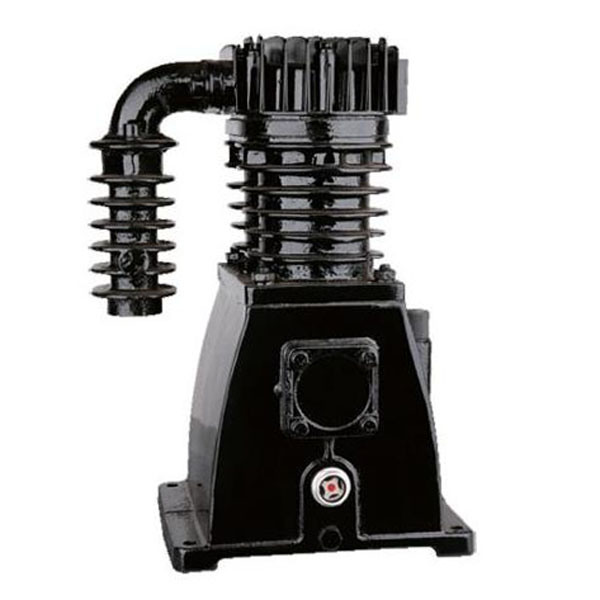

Air Pump BHII40
- Air delivery: 285 lit/min
- Motor power: 4.0 hp
- Pump speed: 1,020 rpm
- Max. pressure: 8 bar /115 psi
- Product description: Belt drive air pump - H type - BHII40 Air delivery: 285 lit/min Motor power: .4.0 hp Pump speed: 1,020 rpm Max. pressure: 8 bar / 115 psi
Product introduction
| Model | BHII40 |
| Air delivery | 530 lit/min |
| Cylinder | (Φ70 x 50.8 mm) x 2 |
| Motor power | 3.0 kw / 4.0 hp |
| Engine power | 6.5 / 8.0 hp |
| Pump speed | 1,180 rpm |
| Max. pressure | 10 bar / 145 psi |
| Body material | cast iron |
| Pulley diameter | 320 mm |
| N.W. | 24 kg |
