> H type Pump - Iron Case

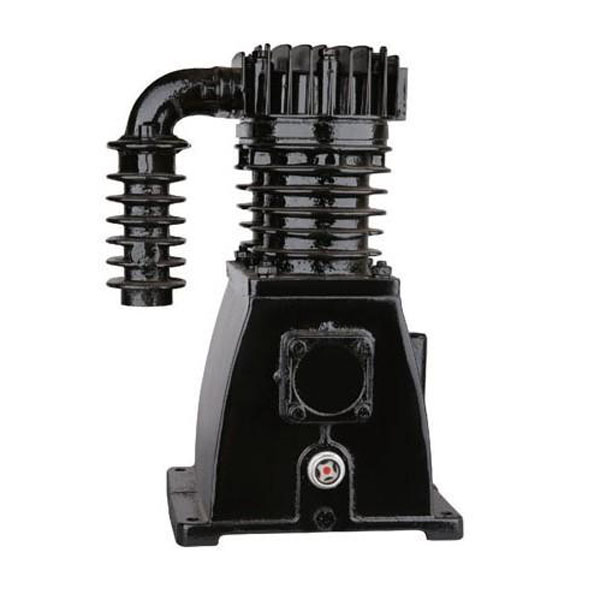

Air Pump BHII55
- Air delivery: 600 lit/min
- Motor power: 5.5 hp
- Pump speed: 1,000 rpm
- Max. pressure: 10 bar /145 psi
- Product description: Belt drive air pump - H type - BHII55 Air delivery: 600 lit/min Motor power: .5.5 hp Pump speed: 1,000 rpm Max. pressure: 10 bar / 145 psi
Product introduction
| Model | BHII55 |
| Air delivery | 600 lit/min |
| Cylinder | (Φ80 x 60 mm) x 2 |
| Motor power | 4.0 kw / 5.5 hp |
| Engine power | 9.0 hp |
| Pump speed | 1,000 rpm |
| Max. pressure | 10 bar / 145 psi |
| Body material | cast iron |
| Pulley diameter | 365 mm |
| Test life | 7,000 hours |
| N.W. | 41 kg |
